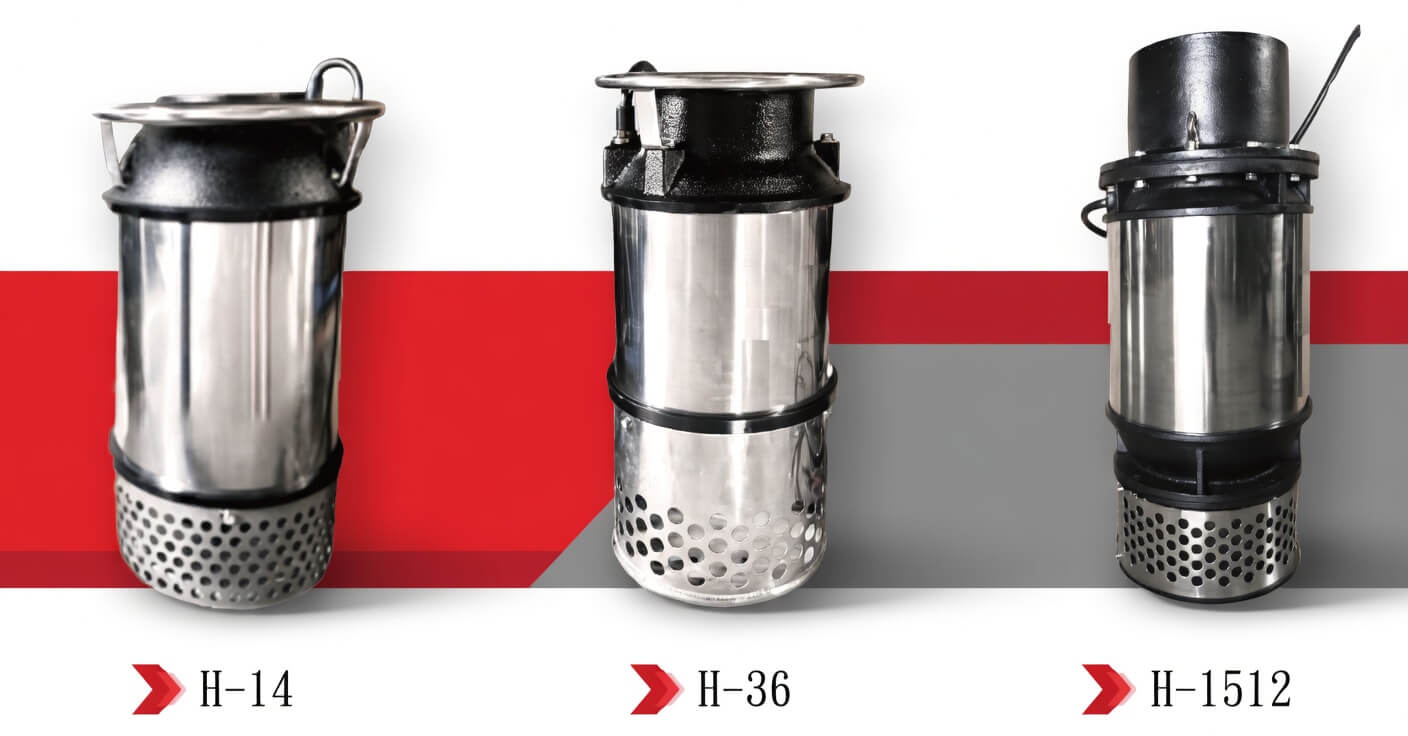

H Type Large-Volume Axial Flow Pump
Application
Suitable for large-volume water discharge applications, including stream water, rivers, agricultural irrigation, aquaculture fish ponds, sewer facilities, and other industrial drainage uses.
Features
1. Axial-flow water design provides high stability, energy-saving operation, and large water flow.
2. Easy to operate, with no need for high-voltage power receiving equipment. It is cost-effective and produces almost no vibration or noise.
3. The pump body and motor casing are made of bronze and stainless steel materials, providing strong durability and corrosion resistance.

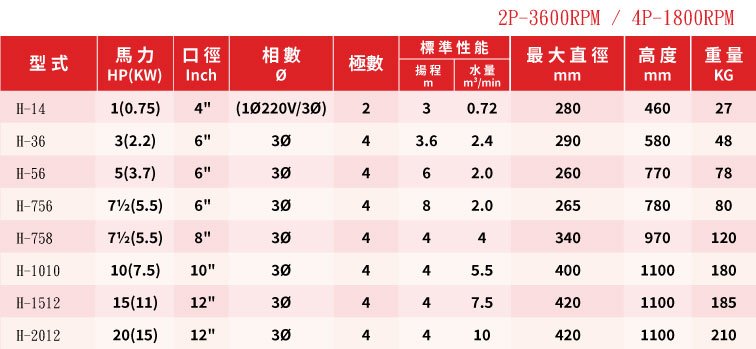

Specification Table
| Item | Description |
| Liquid Temperature | 0–40°C |
| Frequency | 60 Hz |
| Motor | 2-pole / 4-pole Submerged oil-filled motor |
| Insulation Class | Class F |
| Waterproof Rating | IP68 |
Parts Material Table
| Item | Material |
| Outer Upper Cover | FC200 |
| Inner Upper Cover | Bronze |
| Motor Frame | SUS304 |
| Shaft | SUS304 |
| Mechanical Seal | CA/CE & SiC/SiC |
| Casing | FC200 |
| Impeller | Bronze |

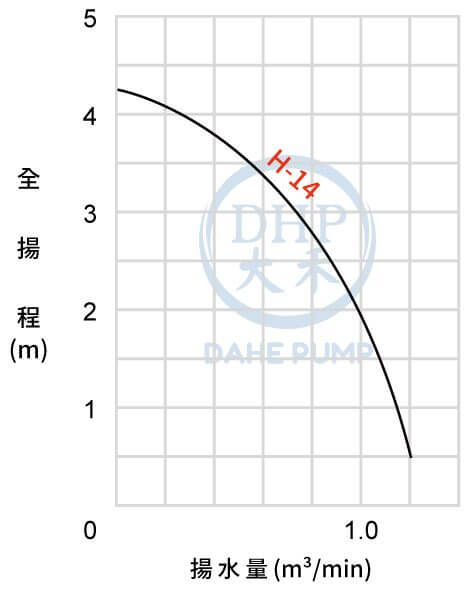

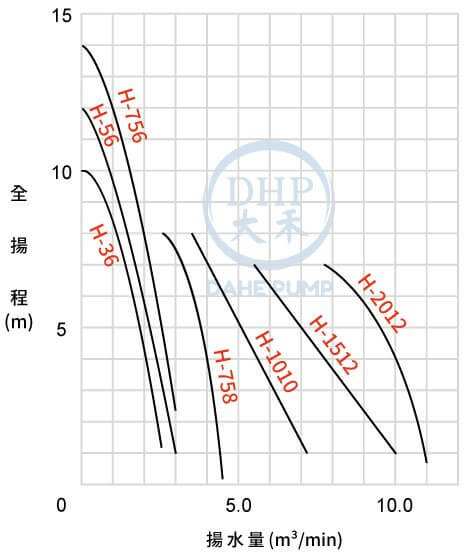

Performance Curve
