B Type Sewage Pump

B Type Sewage Pump

Application
Suitable for pumping and drainage applications in civil construction, engineering projects, sewer systems, agriculture, fisheries, livestock industries, landscape waterfall water circulation, low-lying accumulated water, and other drainage requirements.

Features
1. Compact size, lightweight, easy to use, and suitable for a wide range of applications.
2. The motor body, screws, and filter screen are all made of stainless steel.
3. Designed with a mechanical shaft seal. The shaft is equipped with wear-resistant protection, and the rubber bearing cover effectively blocks moisture and dust, extending bearing service life.
4. Excellent performance, energy-saving operation, large drainage capacity, and easy maintenance.
5. This pump series uses brand-new motor silicon steel sheets, shafts, and rotors that are precision-machined at high speed, ensuring stable motor operation.
※ Models below and including 2HP can be optionally equipped with a float switch.

Specification Table

Item Description
Liquid Temperature 0–40°C
Frequency 60 Hz
Motor 2-pole submerged oil-filled motor
Insulation Class Class F
Waterproof Rating IP68

Parts Material Table

Item Material
Upper Cover FC200
Motor Frame SUS304
Shaft SUS410
Mechanical Seal CA/CE & SiC/SiC
Casing FC200
Impeller FC200

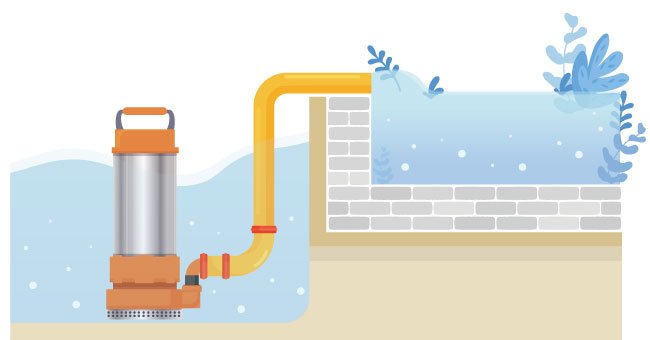

Actual Installation Type

20260521 135028 2ab14136

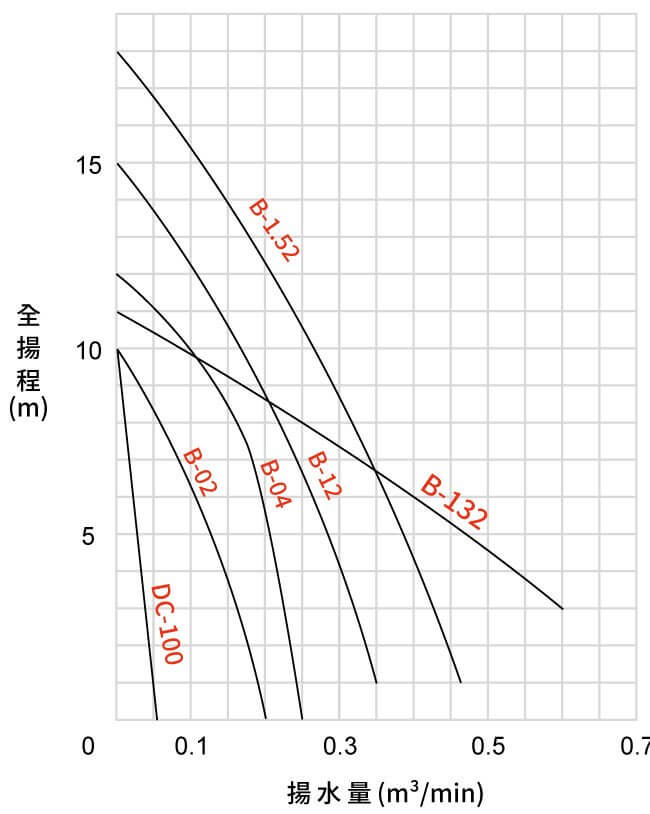

Performance Curve

20260521 135104 8471afba

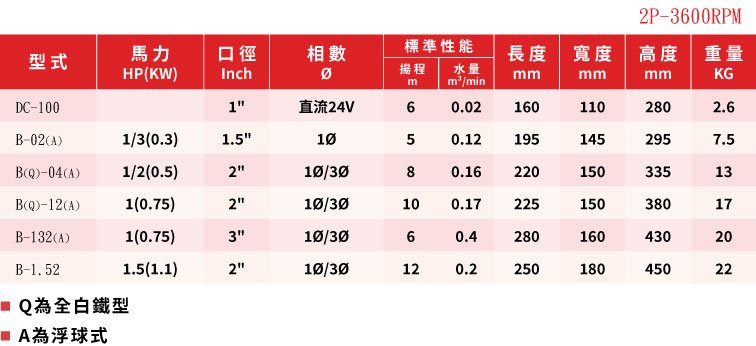

Performance Specification Table

20260521 135203 d8d1abdb
