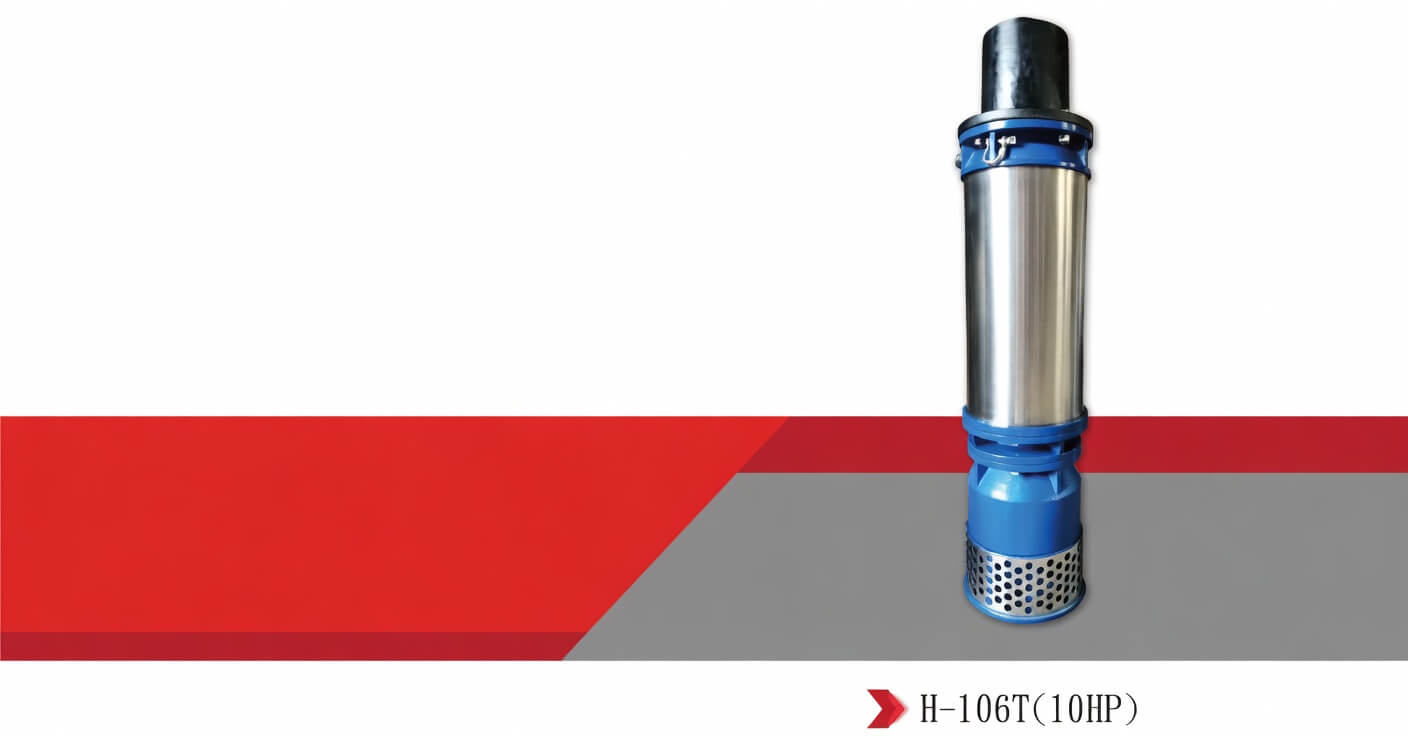

H Type Vertical Shaft Multistage Pump
H Type Vertical Shaft Multistage Pump
Application
Submersible pump for fishery harvesting machines.
Eel pumping machine / eel suction machine / fishery harvesting machine
It can quickly draw fish fry into the eel sorting pond, greatly improving the efficiency of fish harvesting.
Features
Equipped with a two-stage impeller, providing high-head performance and long-distance water delivery capability of up to 600 meters.
The high-speed water flow generates negative pressure, drawing water and fish in through the fish suction inlet, then discharging them together from the fish outlet.
Specification Table
| Item | Description |
| Liquid Temperature | 0–40°C |
| Frequency | 60 Hz |
| Motor | 4-pole Submerged oil-filled motor |
| Insulation Class | Class F |
| Waterproof Rating | IP68 |
Parts Material Table
| Item | Material |
| Outer Upper Cover | FC200 |
| Inner Upper Cover | FC200 |
| Motor Frame | SUS304 |
| Shaft | SUS304 |
| Mechanical Seal | CA/CE & SiC/SiC |
| Casing | FC200 |
| Impeller | Bronze |
