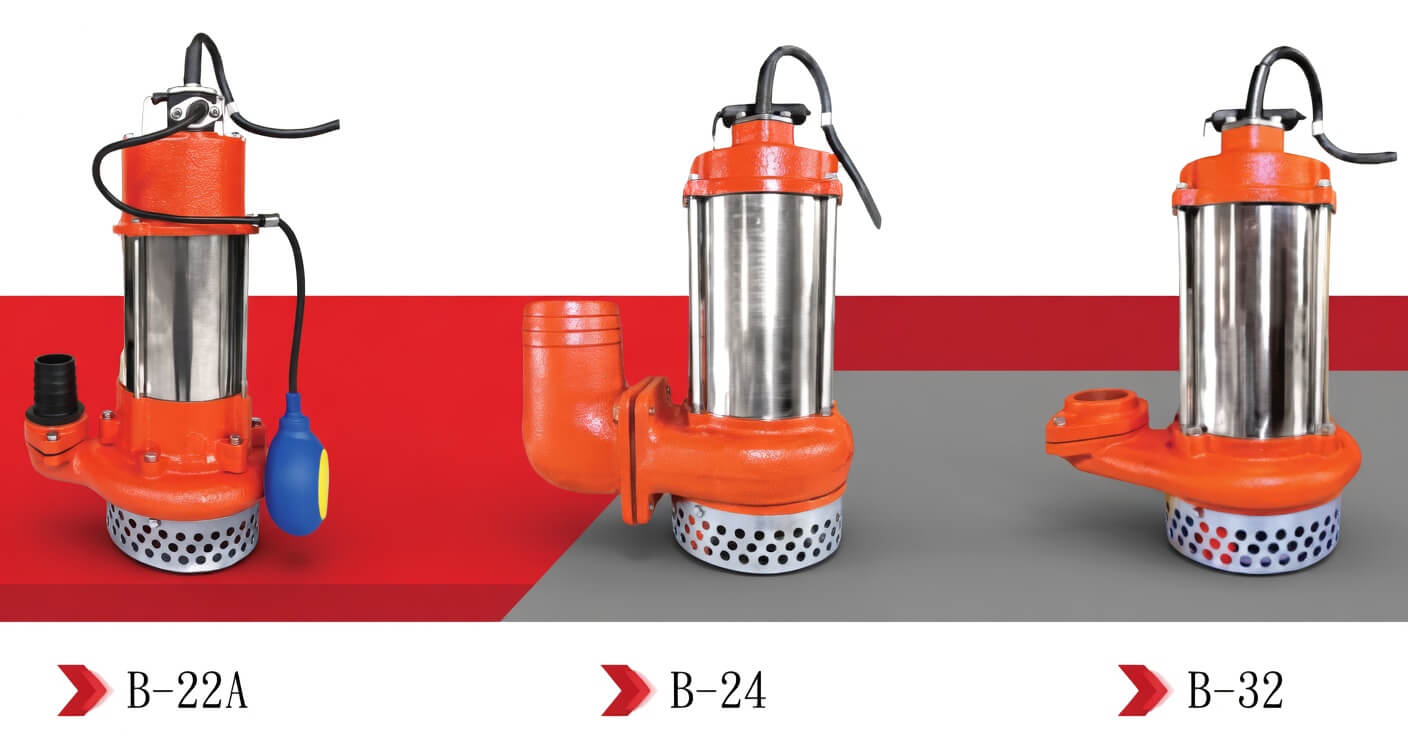

B Type Sewage Pump
Application
Suitable for civil construction, engineering projects, sewer systems, fish ponds, aquaculture, agricultural irrigation, agriculture, fisheries and livestock industries, landscape waterfall water supply, low-lying accumulated water, and other pumping and drainage applications.
Specification Table
| Item | Description |
| Liquid Temperature | 0–40°C |
| Frequency | 60 Hz |
| Motor | 2-pole / 4-pole Submerged oil-filled motor |
| Insulation Class | Class F |
| Waterproof Rating | IP68 |
Parts Material Table
| Item | Material |
| Upper Cover | FC200 |
| Motor Frame | SUS304 |
| Shaft | SUS410 |
| Mechanical Seal | CA/CE & SiC/SiC |
| Casing | FC200 |
| Impeller | FC200 |

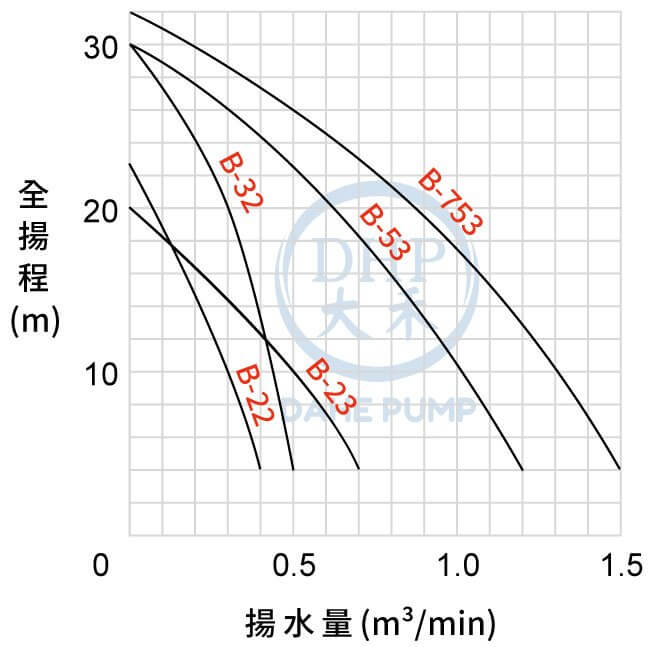

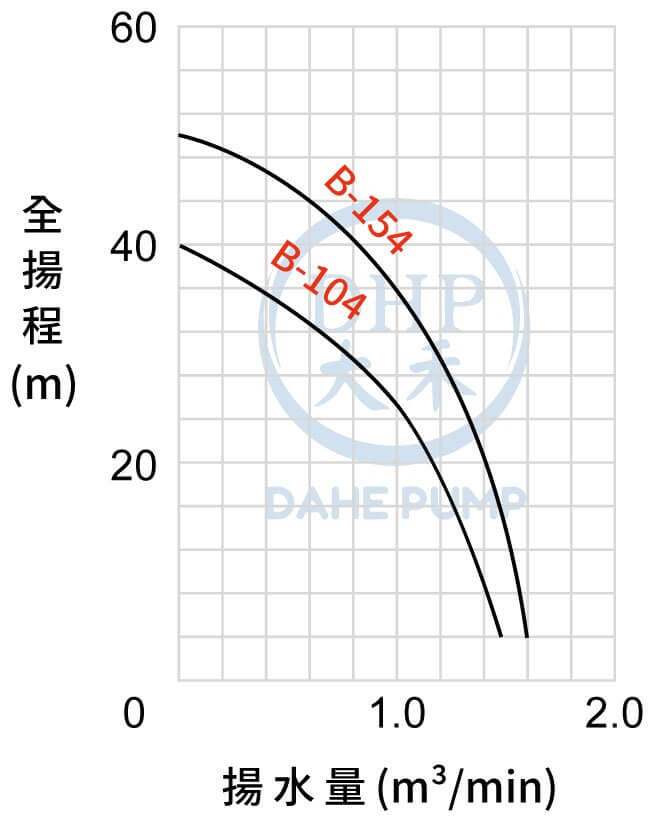

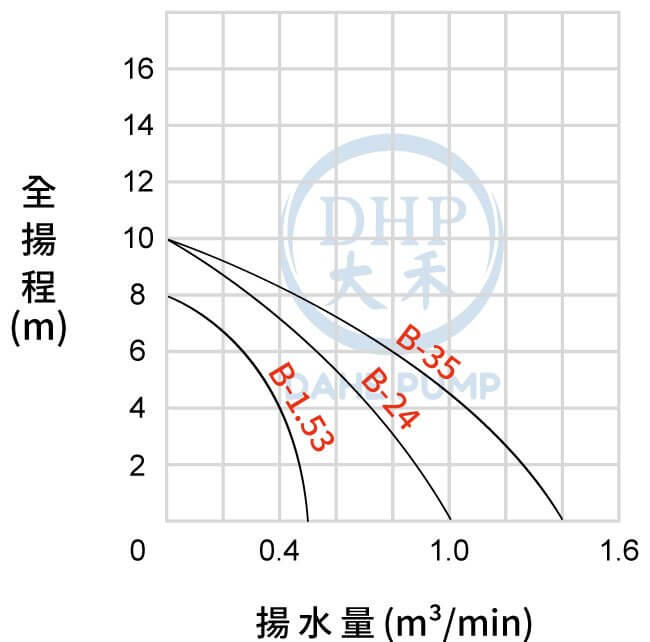

Performance Curve
Performance Curve

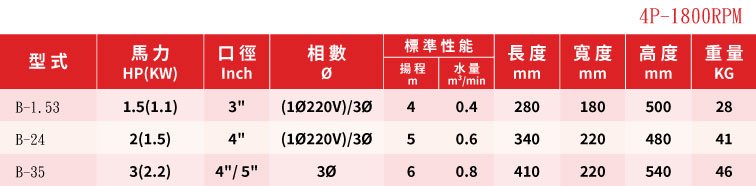

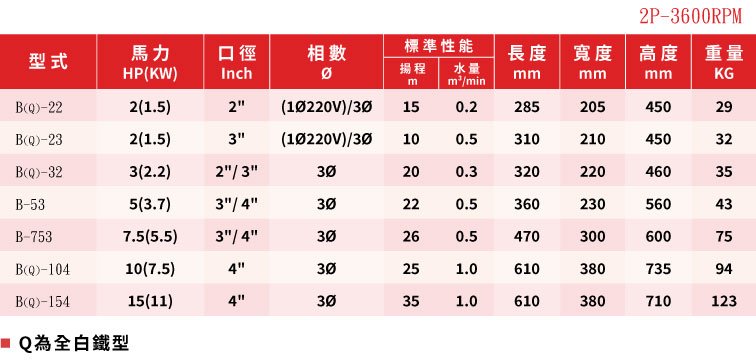

Performance Specification Table
