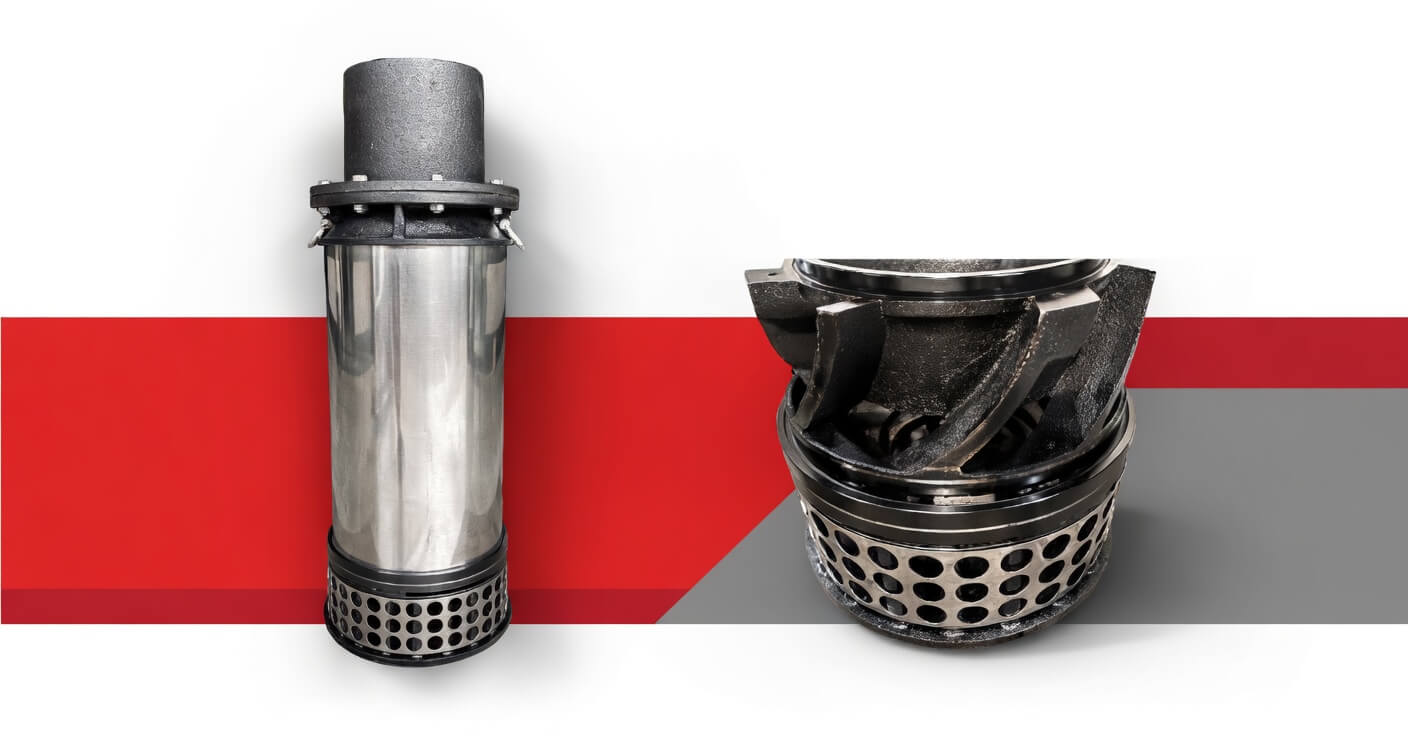

H Type High-Head Mixed Flow Pump
Application
Suitable for large-volume water discharge applications, including stream water, rivers, agricultural irrigation, aquaculture fish ponds, sewer facilities, and other industrial drainage uses.
Features
1. Main components are made of stainless steel. The water-cooled cooling design provides excellent heat dissipation.
2. Mixed-flow water design provides high stability, energy-saving operation, and large water flow.
3. The guide flow seat and pressure relief plate are made of wear-resistant cast iron.
※ This model can also be designed as a dual-purpose pumping and drainage type.
Specification Table
| Item | Description |
| Liquid Temperature | 0–40°C |
| Frequency | 60 Hz |
| Motor | 4-pole Submerged oil-filled motor |
| Insulation Class | Class F |
| Waterproof Rating | IP68 |
Parts Material Table
| Item | Material |
| Outer Upper Cover | FC200 |
| Inner Upper Cover | Bronze |
| Motor Frame | SUS304 |
| Shaft | SUS304 |
| Mechanical Seal | CA/CE & SiC/SiC |
| Casing | FC200 |
| Impeller | Bronze |

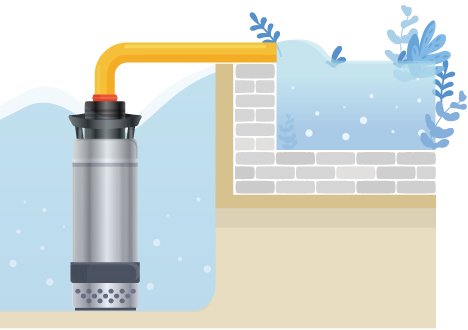

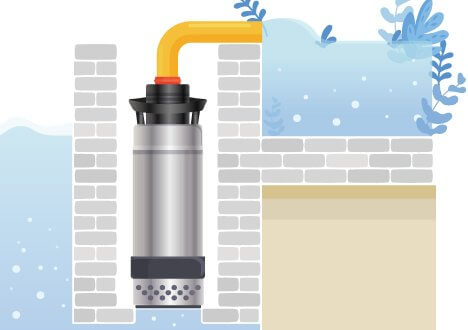

Actual Installation Type

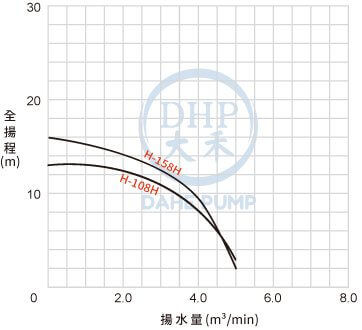

Performance Curve

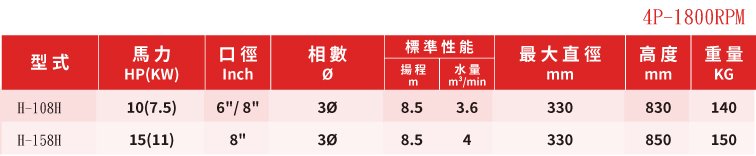

Performance Specification Table
